Robot Package

VISION x FORCE CONTROL x MOTION CONTROL

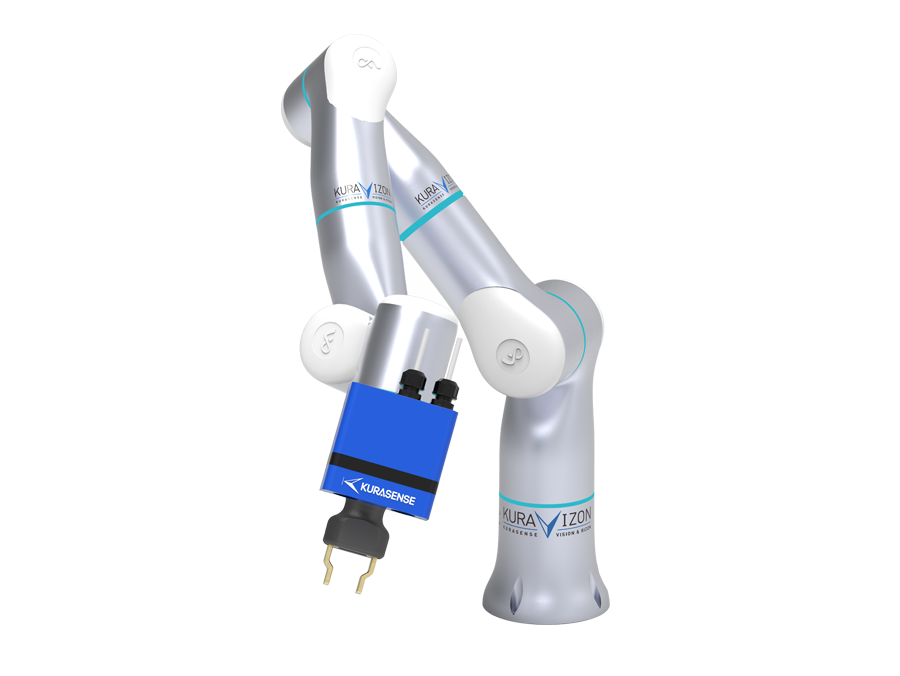

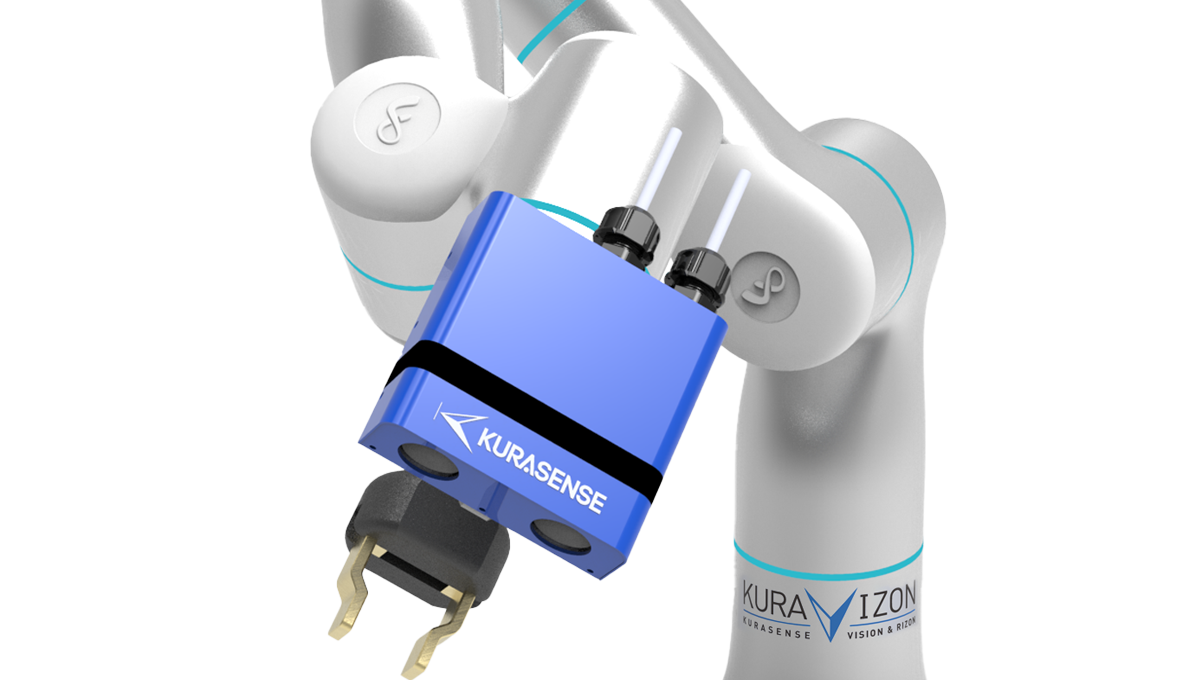

KURAVIZON combines the “eyes” and “brain” of KURASENSE with the “arm” of Flexiv’s Rizon robot, creating a system that mimics human-like capabilities.

KURASENSE provides advanced vision through high-speed 3D sensing and image processing, enabling the robot to handle complex tasks.

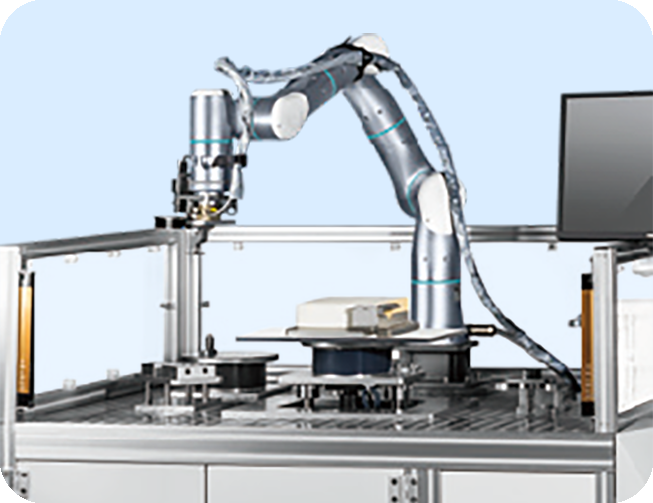

The RIZON robot acts like a human arm, with its 7-axis design offering greater flexibility and a wider range of motion, similar to the range of motion and flexibility of a human arm. The robot's high-sensitivity force control allows it to sense and adapt to contact, safely interacting with objects and people, enhancing its precision and endurance—working longer hours than a human.

Force Sensing 0.03 N

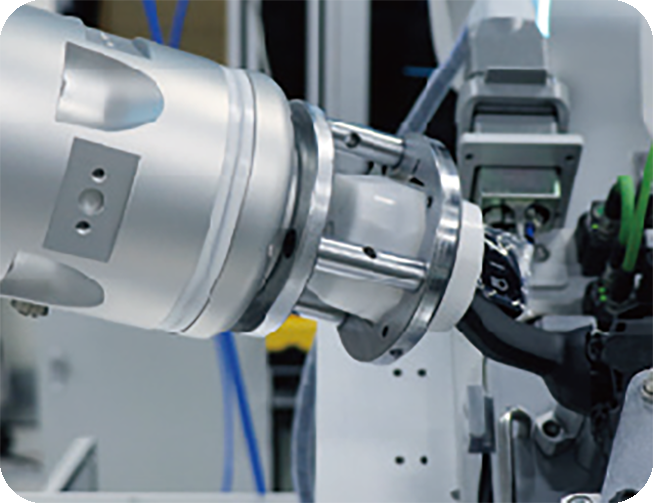

RIZON robots equipped with force sensors at each joint and advanced force control technology powered by Artificial Intelligence, stand out from traditional robots. This unique feature enables the robots to apply highly precise and adaptive forces, allowing them to perform delicate tasks with human-like sensitivity. The real-time force control ensures seamless execution of complex assembly operations and the precise handling of fragile components, providing exceptional precision and flexibility across a wide range of applications.

Multiple cable recognition, compact, ultra-high-Definition model

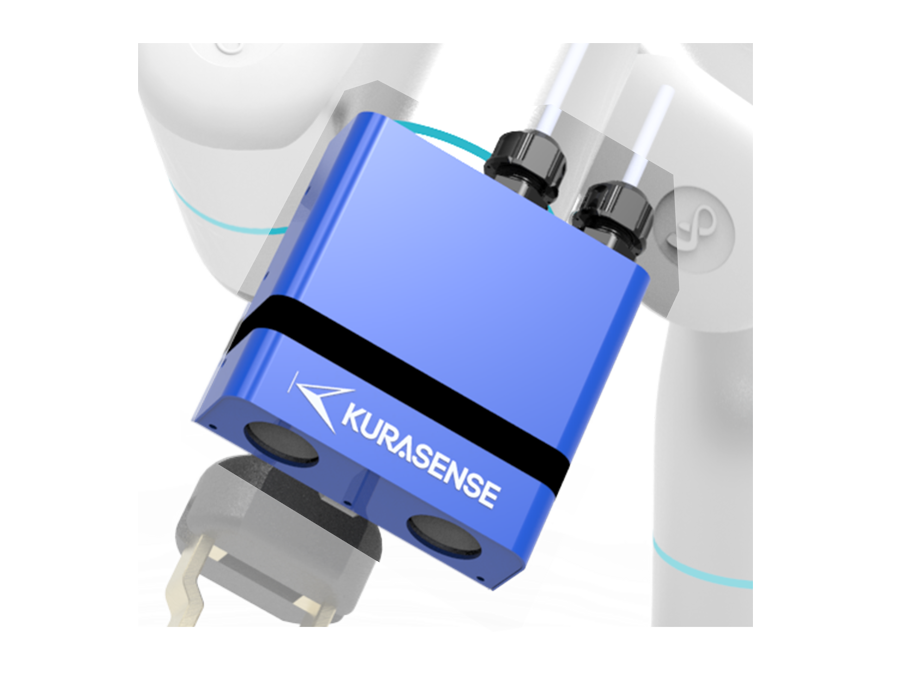

In addition to the functions of conventional models, Kurasense-C300FX can recognize the gripping position of a single cable among multiple cables that are bundled or loose.

External dimensions

Approx 130 × 40 × 131 mm
(*Excluding protrusions)

Weight

Approx 1.0 kg (head part)

Work distance

200 mm

Measurement range

58 × 39 × 22 mm

X-Y Resolution

0.04 mm

Z Resolution

0.2 mm

Laser

Class 3R, 520 nm, Max - 50 mW

Controller

Separately placed

Compact ultra-high definition model

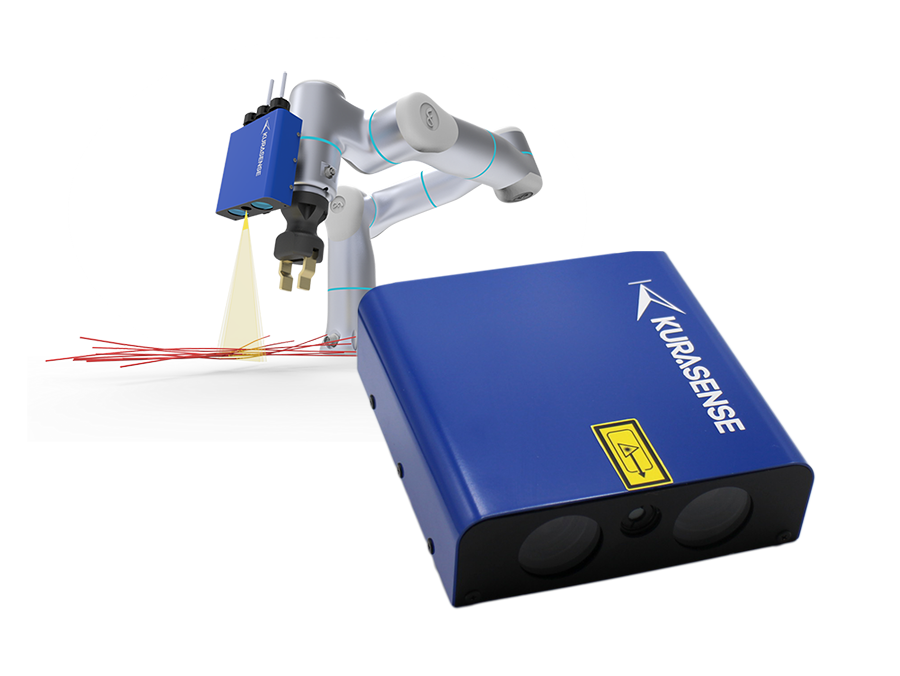

Kurasense-C100FX is a high-speed 3D vision sensor with a separated sensor head and controller. By mounting the sensor unit on the robot hand, it is possible to recognize cables thinner and smaller with high precision than previous models, and it is also possible to fit cables and connectors from various directions to large objects such as automobile engines and transmissions.

External dimensions

Approx 130 × 40 × 130 mm
(*Excluding protrusions)

Weight

Approx 0.8 kg (head part)

Work distance

200 mm

Measurement range

58 × 39 × 22 mm

X-Y Resolution

0.04 mm

Z Resolution

0.2mm

Controller

Separately placed

efficiency, accuracy, and safety

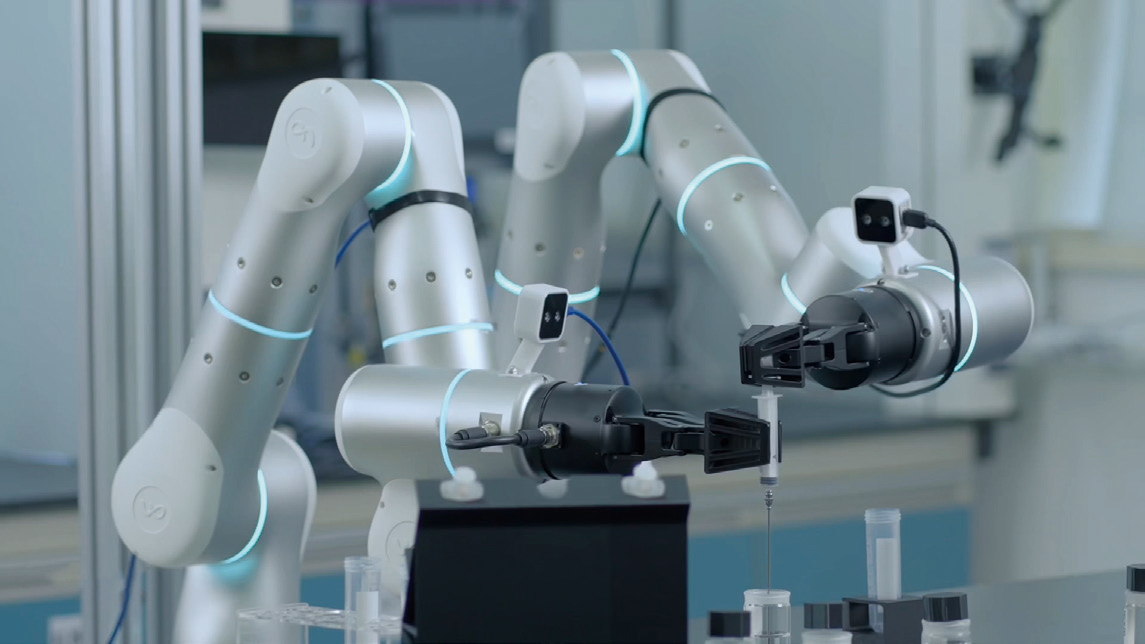

The Kuravizon system enhances efficiency, accuracy, and safety across various lab applications. It reduces human error, speeds up workflows,and allows remote operation in hazardous environments.With force sensing, it ensures precise handling of delicate objects, preventing damage and minimizing contamination.

For Manufacturing

1. Sensor element → Direct soldering to the terminals of the sensor element or crimping and soldering the lead wires for resistors.
2. Electronic board → Lead wires can be positioned and soldered to metal pads and through-holes on the board with high accuracy.
3. Wire Harness → Automation of Intricate soldering connections for harness end connectors.

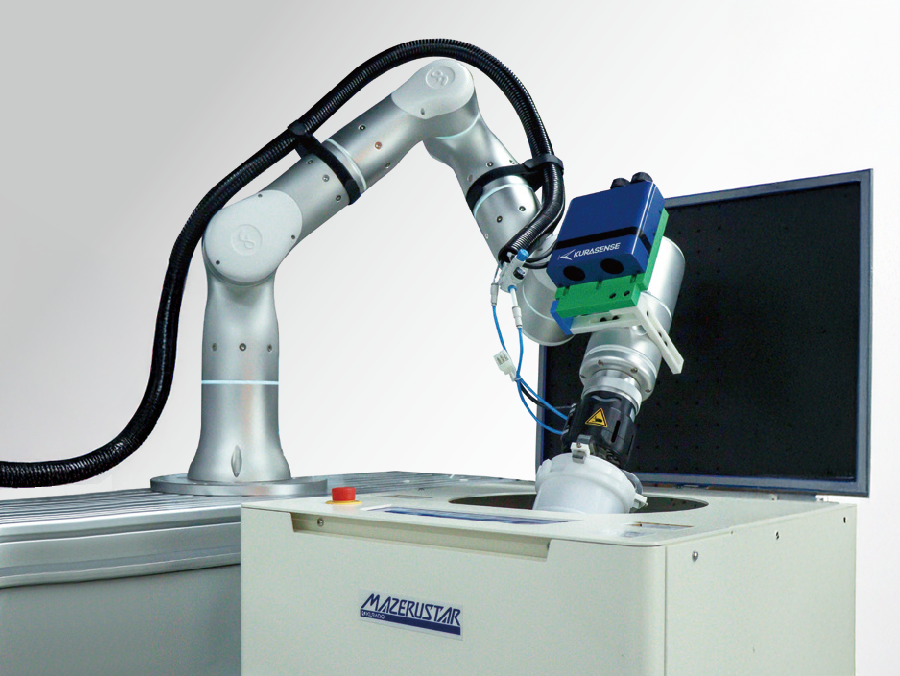

By using KURAVIZON with planetary mixer Mazerustar, you can automize your workplace.
Full automation from material preparation and dispensing to mixing and defoaming. This system help to save labor and prevent human error.
For more information about Mazerustar → click here
