Planetary mixer /
Deaerator

MAZERUSTAR KK series
Planetary Mixer / Deaerator

Enables simultaneous mixing / deaerating within a short time without using mixing rods and blades. This system is used for a wide variety of materials such as highly viscous materials and materials having different specific gravities, without contamination by foreign matter.

MAZERUSTAR

Axis

2 axes・・・Revolution / Rotation Independent change

1 axis・・・Fixed ratio of Revolution / Rotation

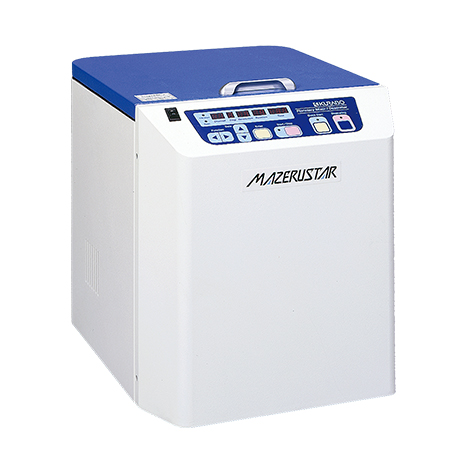

KK-250S / 250SE (CE mark declared)

2 axes

Specification
Standard container HDPE 250ml Standard container
Max. processing quantity 250g x 1container
Power supply KK-250S : AC100V ± 10%
KK-250SE : AC200 - 240V
Electricity consumption Approx. 650W
Outside dimension (WxDxH) mm 350 x 420 x 415
Main body weight Approx. 37kg

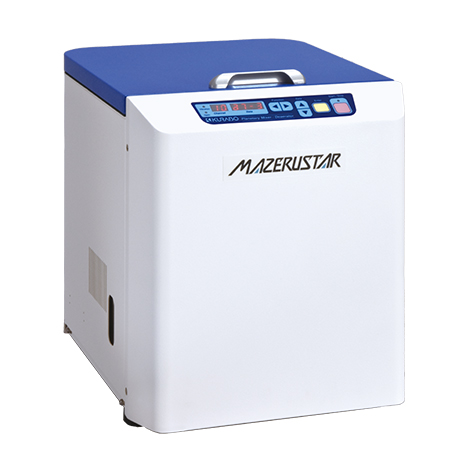

KK-300SS / 300SSE (CE mark declared)

1 axis

Specification
Standard container HDPE 300ml Standard container
Max. processing quantity 310g x 1container
Power supply KK-300SS : AC100V ± 10%
KK-300SSE : AC200 - 240V
Electricity consumption Approx. 400W
Outside dimension (WxDxH) mm 340 x 315 x 370
Main body weight 24kg

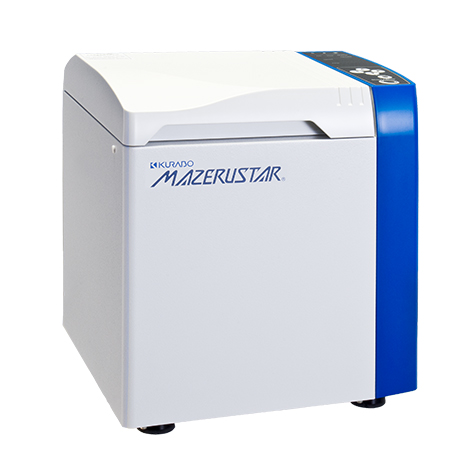

KK-400W / 400WE (CE mark declared)

2 axes

Specification
Standard container HDPE 370ml Standard container
Max. processing quantity 400g x 2containers
Power supply KK-400W : AC100V ± 10%
KK-400WE : AC200 - 240V
Electricity consumption Approx. 750W
Outside dimension (WxDxH) mm 400 x 513 x 457
Main body weight Approx. 51kg

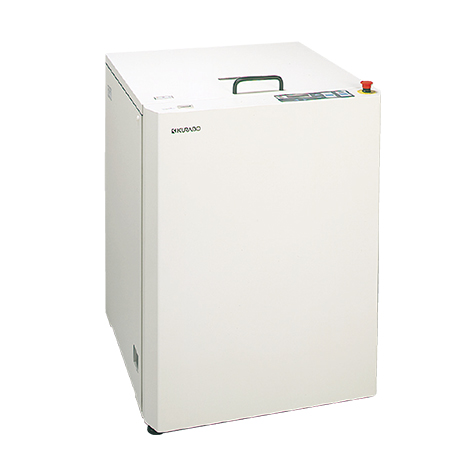

KK-1000WE (CE mark declared)

2 axes

Specification
Standard container HDPE 1.1L Standard container
Max. processing quantity 1kg x 2containers
Power supply 1φ, AC200V ± 10%
Electricity consumption Approx. 2kW
Outside dimension (WxDxH) mm 565 x 597 x 700
Main body weight Approx. 140kg

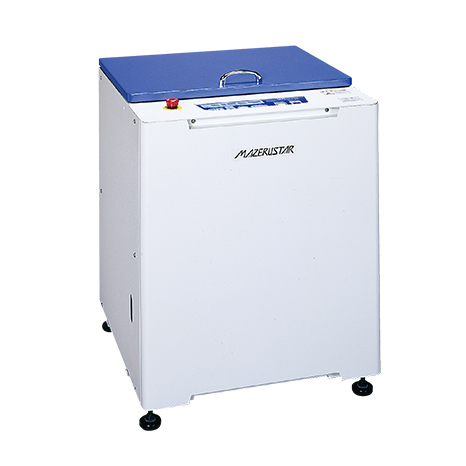

KK-2000WE (CE mark declared)

2 axes

Specification
Standard container Max Approx. 2L (Specified by customer)
Max. processing quantity 2kg x 2containers
Power supply 3φ, AC200V ± 5%
Electricity consumption Approx. 2.5kW
Outside dimension (WxDxH) mm 646 x 663 x 851
Main body weight Approx. 225kg

KK-5000W / 5000WE (CE mark declared)

2 axes

Specification
Standard container HDPE 3.5L Standard container
Max. processing quantity 5kg x 2containers
Power supply KK-5000W : 3φ, AC200 - 240V
KK-5000WE : 3φ, AC380 - 415V
Electricity consumption Approx. 7kW
Outside dimension (WxDxH) mm 790 x 910 x 1091
Main body weight Approx. 475kg

KK-10000

1 axes

Specification
Standard container HDPE 4L Standard container
Max. processing quantity 10kg x 2containers
Power supply 3φ, AC200V ± 5%
Electricity consumption Approx. 10kW
Outside dimension (WxDxH) mm 950 x 1070 x 1224
Main body weight Approx. 600kg

Allows high-level deaerating by adding a vacuum function!
MAZERUSTAR KK-V series

Specification

Specification (*1)
Model name KK-250S
KK-250SE
KK-300SS
KK-300SSE
KK-400W
KK-400WE
Standard container (*2) HDPE
250ml Standard container
HDPE
300ml Standard container
HDPE
370ml Standard container
Max. processing quantity (*3) 250g x 1container 310g x 1container 400g x 2containers
Revolution 10 level variable (10 - 1) can be set by increments of 10rpm
(Fixed ratio of rotation / revolution)
*Select mode form Mixer mode, Middle mode, Degassing mode, Wave mode.
10 level variable (10 - 1)
Rotation 10 level variable (9 - 0)
(0.0 - 1.0times of revolution speed)
10 level variable (9 - 0)
(0.0 - 0.91times of revolution speed)
Setting time 10 - 990seconds x 5steps
*Max. operating total time 990seconds. (Units of 10sec.)
0 - 30minutes x 9steps
*Max. operating total time 30minutes.
10 - 990seconds x 5steps
*Max. operating total time 990seconds. (Units of 10sec.)
Number of channel 100
(Fixed channel : 10,
user setting channel : 90)
user setting channel : 10 100
(Fixed channel : 10,
user setting channel : 90)
Main warning device Unbalance, Upper door and / or maintenance cover open, and overload
Main safety function Automatic shut off in case of error, Locking door while in operation and preventing system from being used while door open.
Temperature and
humidity for use
10 - 40, 20 - 80%RH (No dew condensation)
Power supply (S) AC100V ± 10%
(SE) AC200 - 240V
(SS) AC100V ± 10%
(SSE) AC200 - 240V
(W) AC100V ± 10%
(WE) AC200 - 240V
Electricity consumption Approx. 650W Approx. 400W Approx. 750W
Outside dimension
(WxDxH) mm
350 x 420 x 415 340 x 315 x 370 400 x 513 x 457
Main body weight 37kg 24kg 51kg

(*1) Specification are subject to change without prior notice.

(*2) Multiple kinds of containers or syringes can be used by optional adaptors.

(*3) Including weight of container and adaptor. It may be reduced depending on character of material and operating condition.

Specification (*1)
Model name KK-1000WE KK-2000WE KK-5000W
KK-5000WE
KK-10000
Standard container (*2) HDPE
1.1L Standard container
(Specified by customer, Max.2L approx.) HDPE
3.5L Standard container
HDPE
4L Standard container
Max. processing quantity (*3) 1kg x 2containers 2kg x 2containers 5kg x 2containers 10kg x 2containers
Revolution 10 level variable (10 - 1) 9 level variable (9 - 1) 9 level variable (9 - 1)
(Fixed ratio of rotation / revolution)
Rotation 10 level variable (9 - 0)
(0.0- 0.94 times of revolution speed)
10 level variable (9 - 0)
(0.0 - 1.0 times of revolution speed)
Setting time 10 - 990seconds x 5steps
*Max. operating total time 990seconds.
0 - 900seconds x 5steps
*Max. operating total time 25minutes.
10 - 300seconds x 5steps
*Max. operating total time 25minutes.
10 - 300seconds x 3steps
Number of channel 100
(Fixed channel : 10,
user setting channel : 90)
20
(Fixed channel : 10,
user setting channel : 10)
Main warning device Unbalance, Upper door and / or maintenance cover open, and overload
Main safety function Automatic shut off in case of error, Locking door while in operation and preventing system from being used while door open.
Temperature and
humidity for use
10 - 40,
20 - 80%RH (No dew condensation)
Power supply 1φ, AC200V ± 10% 3φ, AC200V ± 5% (W) 3φ, AC200 - 240V
(WE) 3φ, AC380 - 415V
3φ, AC200V ± 5%
Electricity consumption Approx. 2kW Approx. 2.5kW Approx. 7kW Approx. 10kW
Outside dimension
(WxDxH) mm
565 x 597 x 700 646 x 663 x 851 790 x 910 x 1091 950 x 1070 x 1224
Main body weight Approx. 140kg Approx. 225kg Approx. 475kg Approx. 600kg

(*1) Specification are subject to change without prior notice.

(*2) Multiple kinds of containers or syringes can be used by optional adaptors.

(*3) Including weight of container and adaptor. It may be reduced depending on character of material and operating condition.

Containers and options

We provide containers and adapters (option) suitable for products and usage.

For MAZERUSTAR, which integrates a mixer and deaerator, desirable containers including disposable cups and commercially available containers, in addition to standard containers, can be used with an optional adaptor. Especially for syringes, multiple sets of adaptors are available that are suitable for deaerating multiple syringes filled with paste.

- Standard container -

Made of HDPE

Made of SUS

- Disposal containers and adapters -
- Syringe / cartridge and adapter -
