Steel, automotive

For controlling the resin coating thickness and oil thickness on steel sheets
The RX-4000 model can measure inorganic components such as oxide films and various trace components.

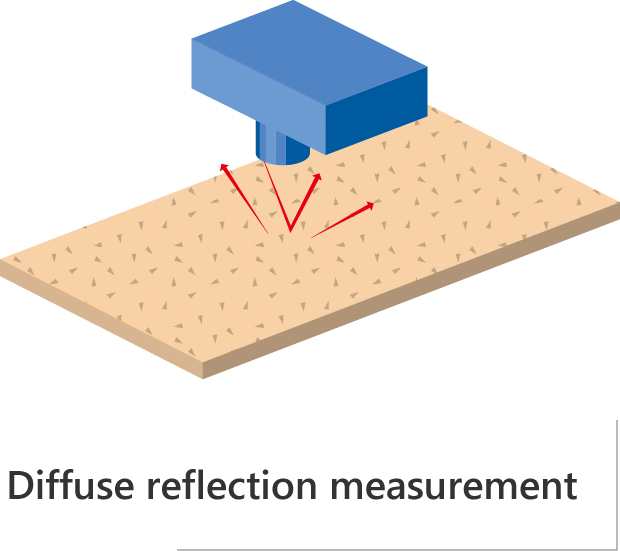

Measurement method

Applications

  • Oil thickness of anti-rust oil and press oil for automobile steel sheets
  • Coating thickness of organic films for anti-fingerprint steel sheets and lubricant-coated steel sheets
  • Coating thickness of electromagnetic steel sheets
  • Coating thickness of aluminum can lids

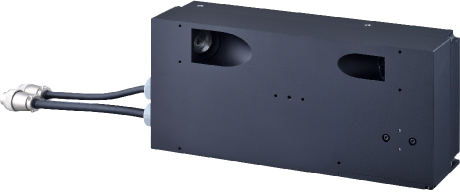

  • RX-2500

    Measurement specifications
    Measurement method Infrared absorption method
    Spectroscopy Rotating filter method(Six filters can be mounted.)
    Measurement distance 50mm (from the lower surface of the main unit)
    Measurement area 10×15mm (oval)
    Main unit specifications
    Sensor head Outer dimensions: 315mm(W)×145mm(D)×90mm(H) (Excluding protruding parts)
    Weight: 4.5kg
    Relay unit Outer dimensions: 250mm(W)×140mm(D)×113mm(H) (Excluding protruding parts)
    Weight: 3kg
    Power supply: AC100-240V±10%
    External output Selectable from Analog 0 – 10V or 4-20mA (preset before shipment)
    Operating temperature 5~40℃(No dew condensation, air purging is mandatory in ambient temperatures above 35°C)

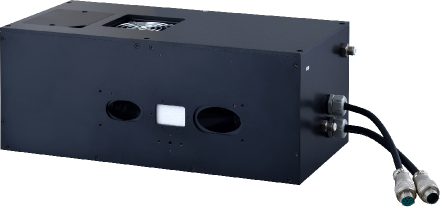

  • RX-4000

    Measurement specifications
    Measurement method Infrared absorption method
    Spectroscopy Rotating filter method(Six filters can be mounted.)
    Measurement distance 40mm (from the lower surface of the main unit)
    Measurement area 20×30mm (oval)
    Main unit specifications
    Sensor head Outer dimensions: 410mm(W)×207mm(D)×160mm(H) (Excluding protruding parts)
    Weight: 8.5kg
    Relay unit Outer dimensions: 322mm(W)×140mm(D)×113mm(H) (Excluding protruding parts)
    Weight: 4kg
    Power supply: AC100-240V±10%
    External output Selectable from Analog 0 – 10V or 4-20mA (preset before shipment)
    Operating temperature 5 – 40 deg. C (No dew condensation, air purging is mandatory in ambient temperatures above 35°C)

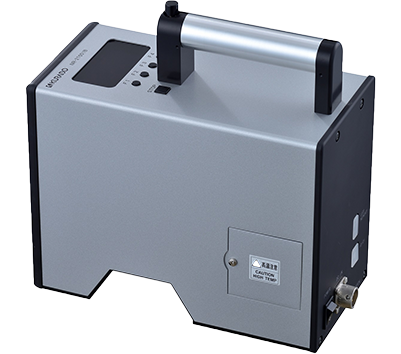

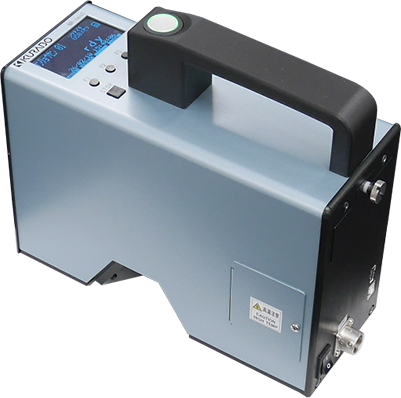

  • NR-2100/2100 IB

    Portable offline model. You can easilly measure where you want, when you want. Please feel the performance of Kurabo with this portable model.

    Measurement specifications
    Measurement method Infrared absorption method
    Spectroscopy Rotating filter method(Three filters can be mounted.)
    Measurement distance 2mm (from the lower surface of the main unit)
    Measurement area 18×36mm (oval)
    Main unit specifications
    Main unit
    • Outer dimensions:
      NR-2100 :
      112mm(W)×226mm(D)×101mm(H)(Excluding handle and protruding parts)
    • NR-2100IB:
      112mm(W)×225mm(D)×172.5mm(H)(Excluding handle and protruding parts)
    Weight:
    NR-2100 1.8kg,
    NR-2100IB 3.3kg
    • Power supply:
      NR-2100 :
      AC100-240V±10% 47~63Hz 65VA
    • NR-2100IB :
      AC100-240V±10% 47~63Hz 65VA(Can also be driven by AC power supply)
      Battery operation:
      Approx. 7 hours
    Operating temperature 5 – 40 deg. C (No dew condensation)
    Accessories Zero calibration unit, AC adopter
